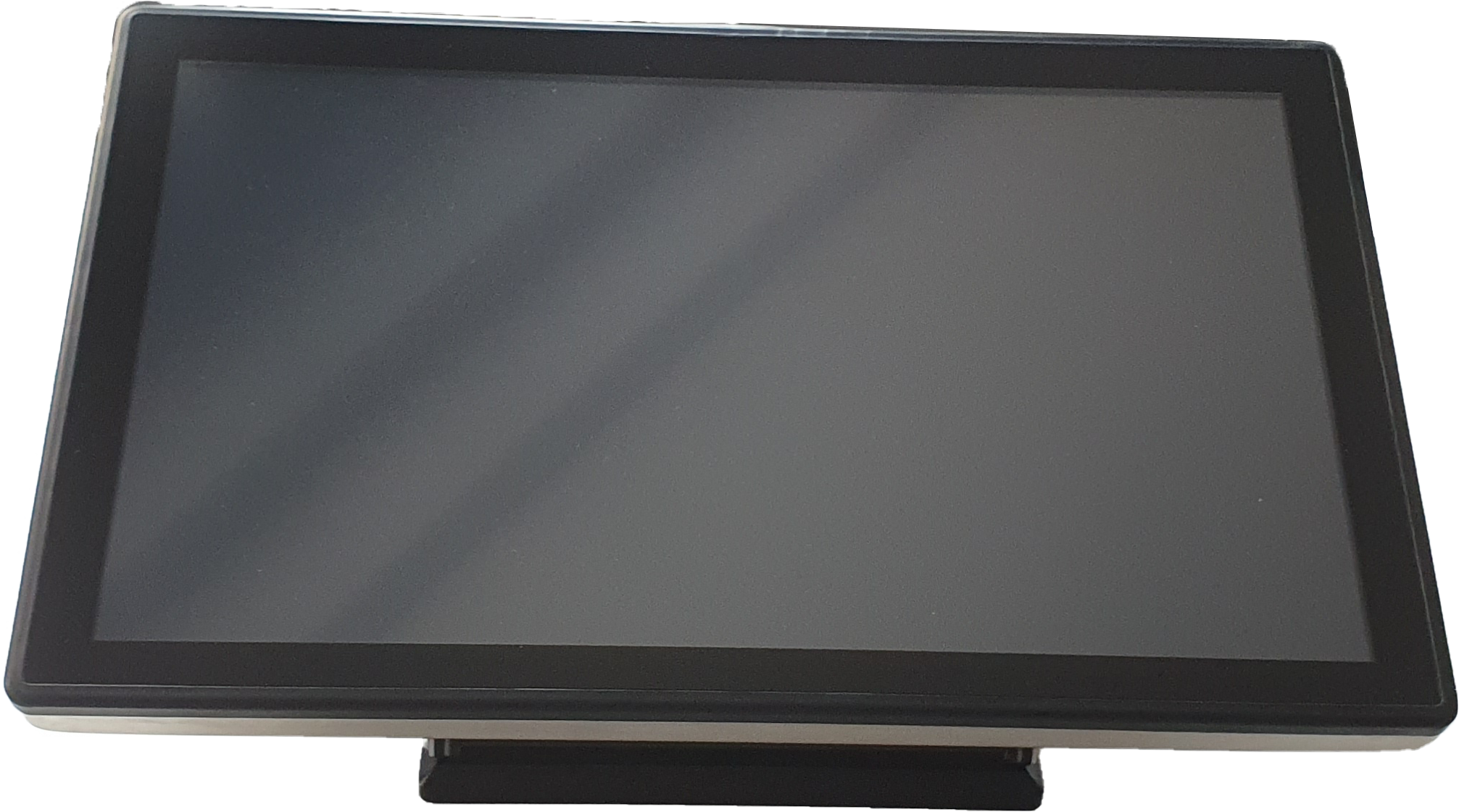

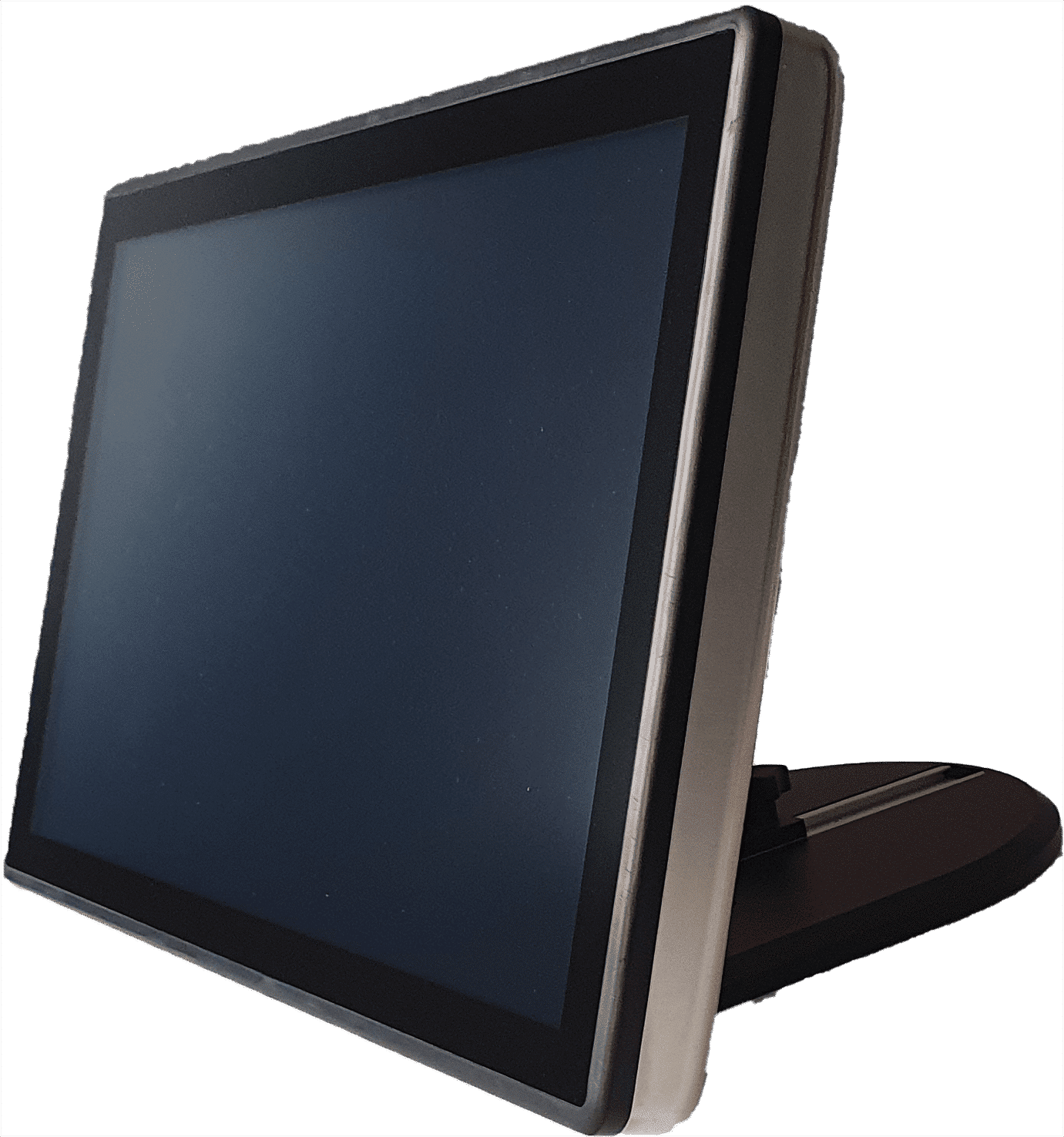

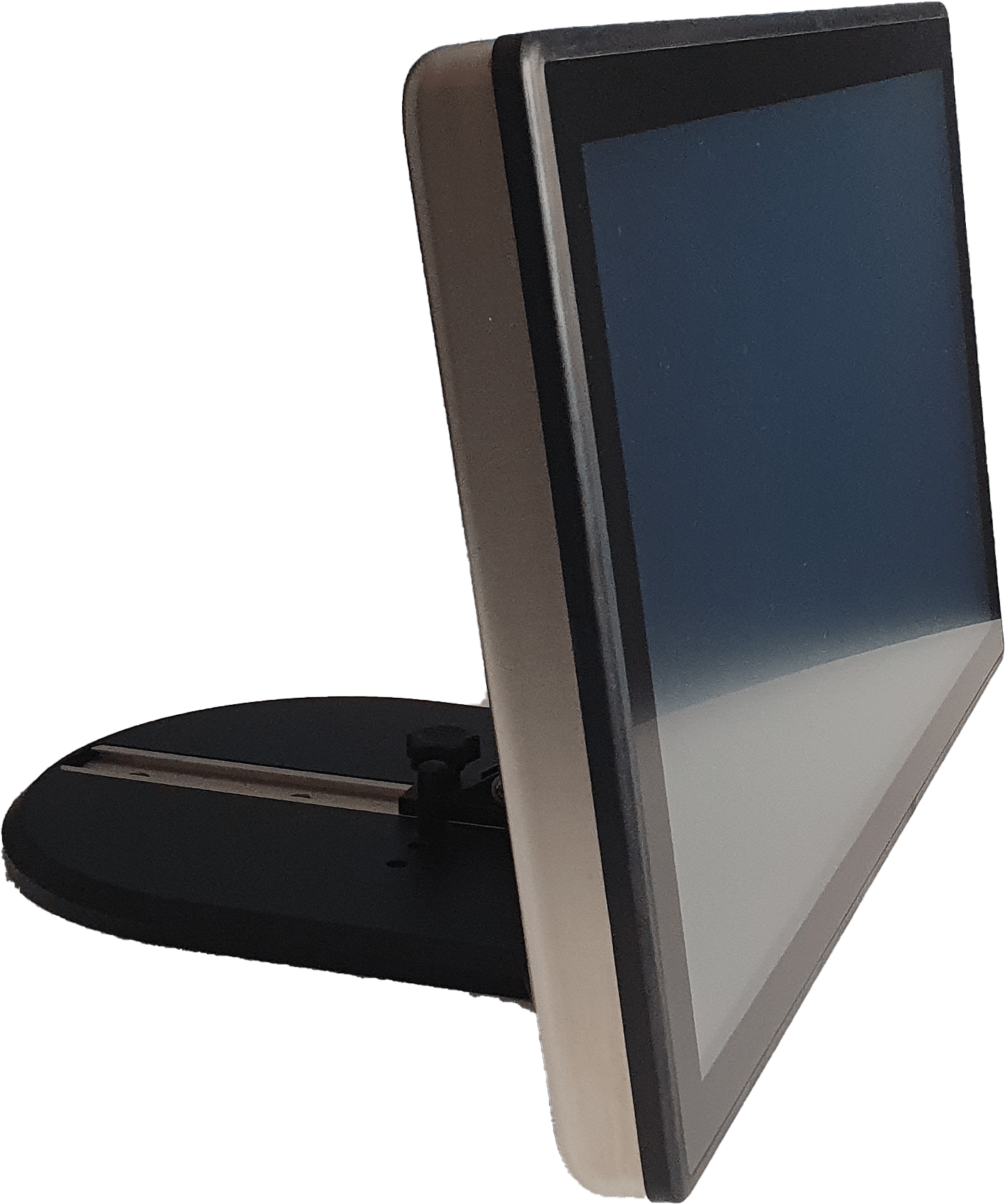

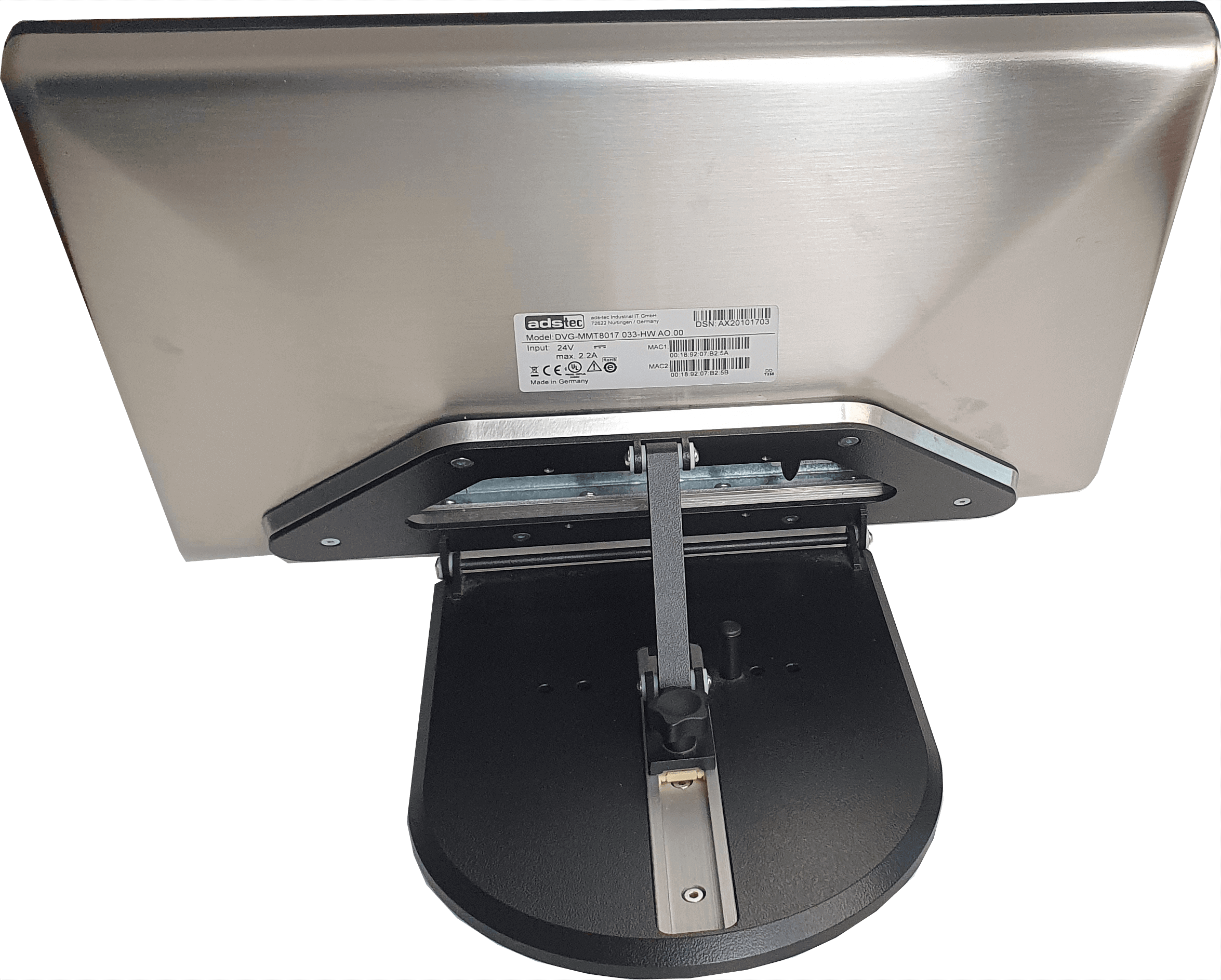

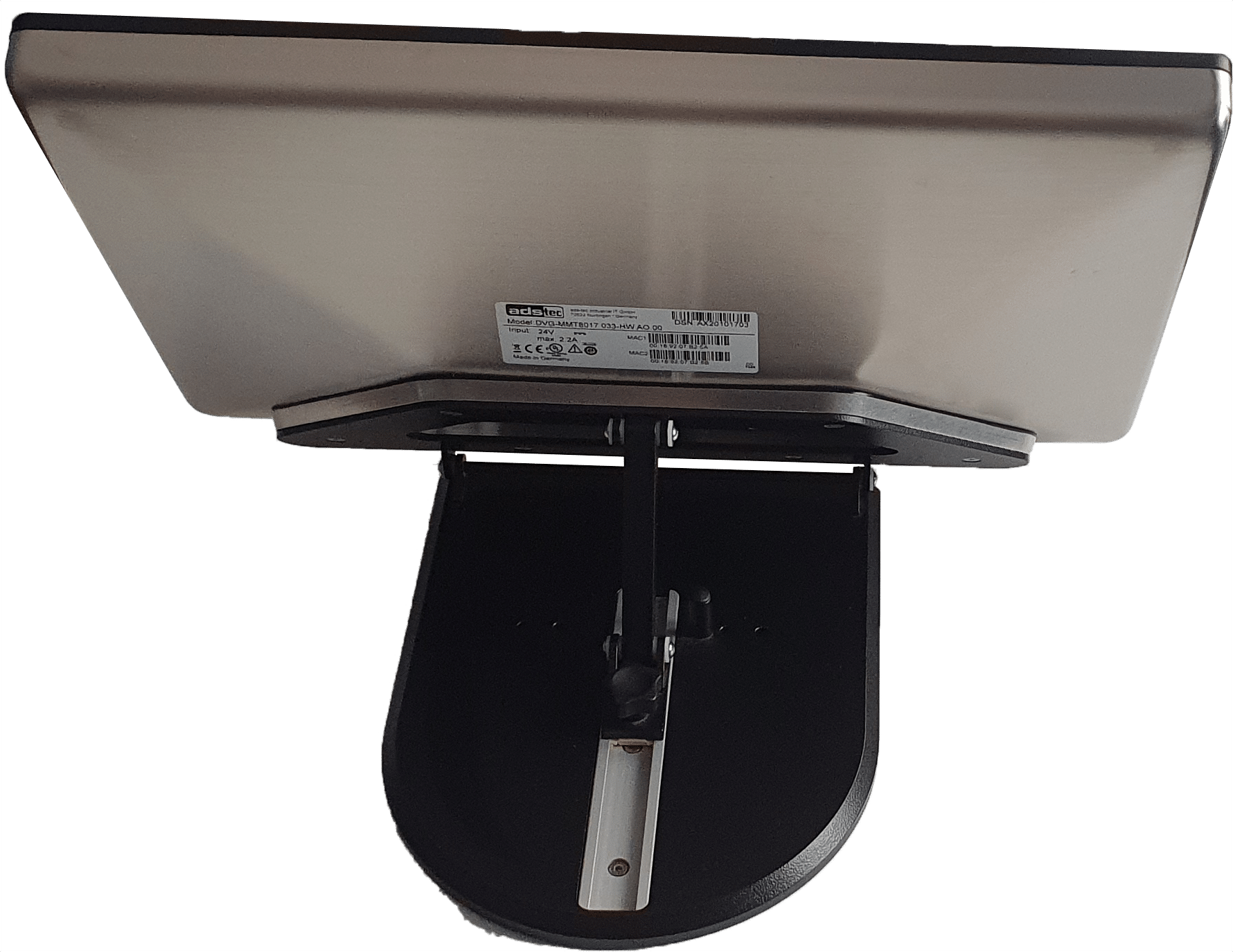

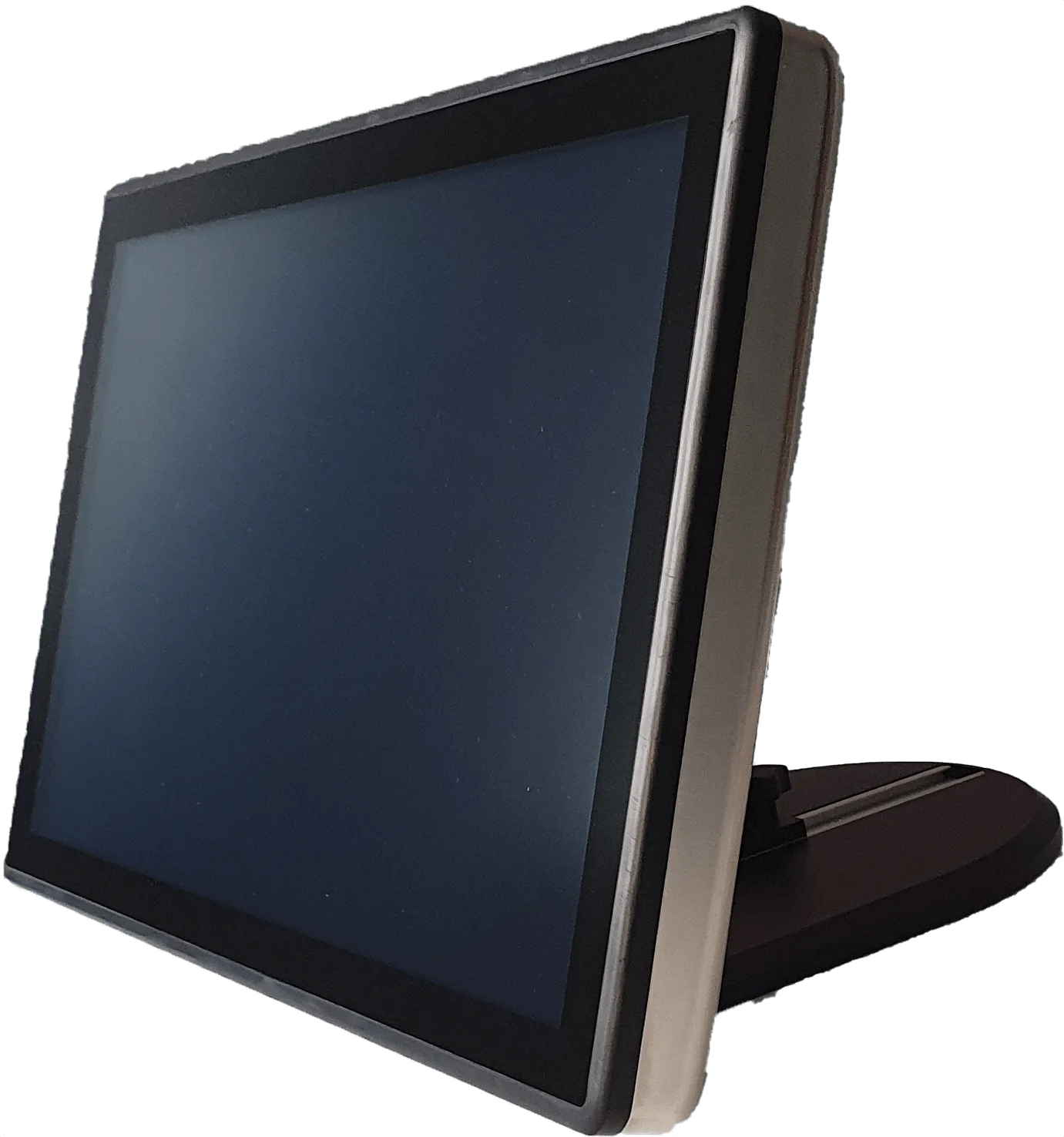

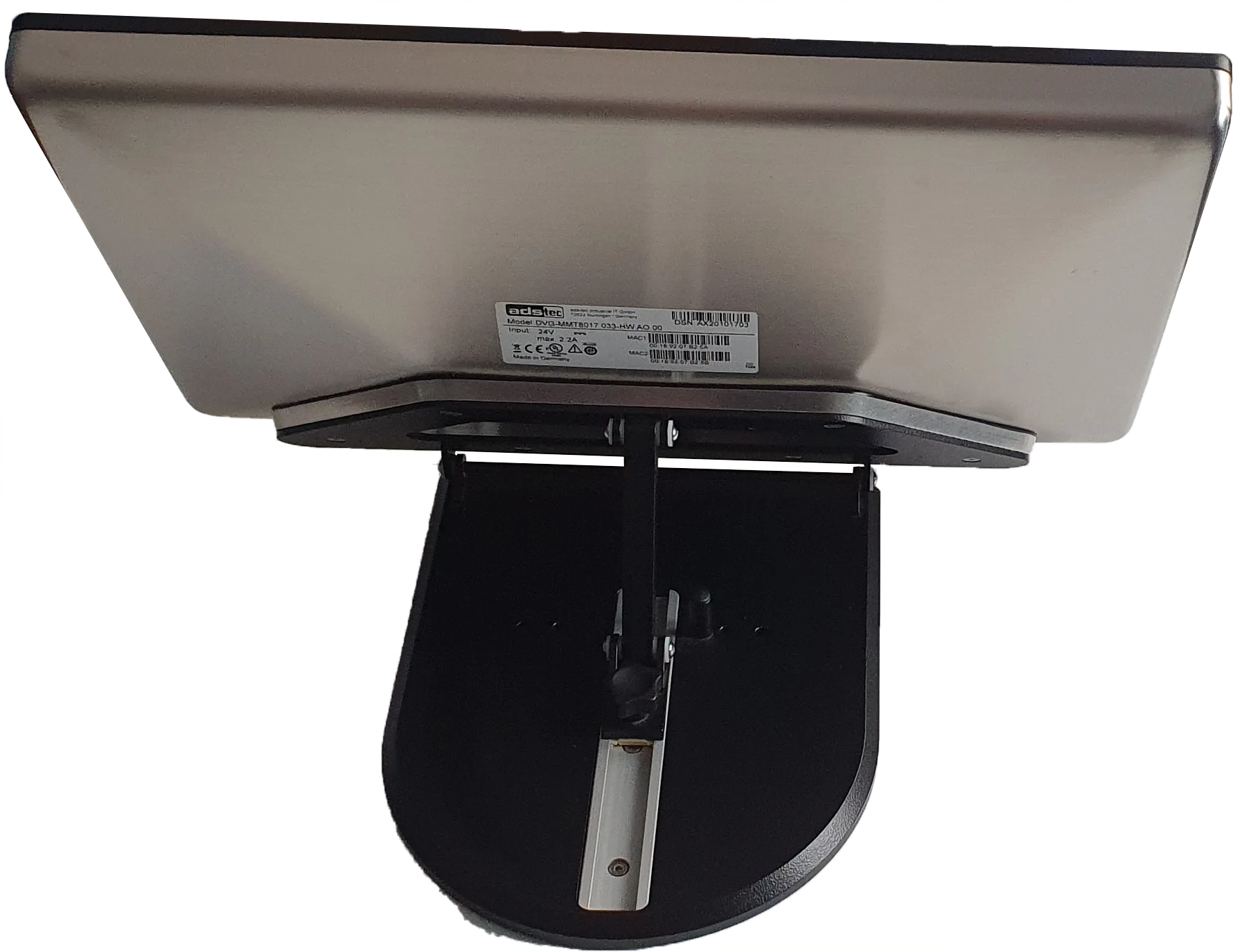

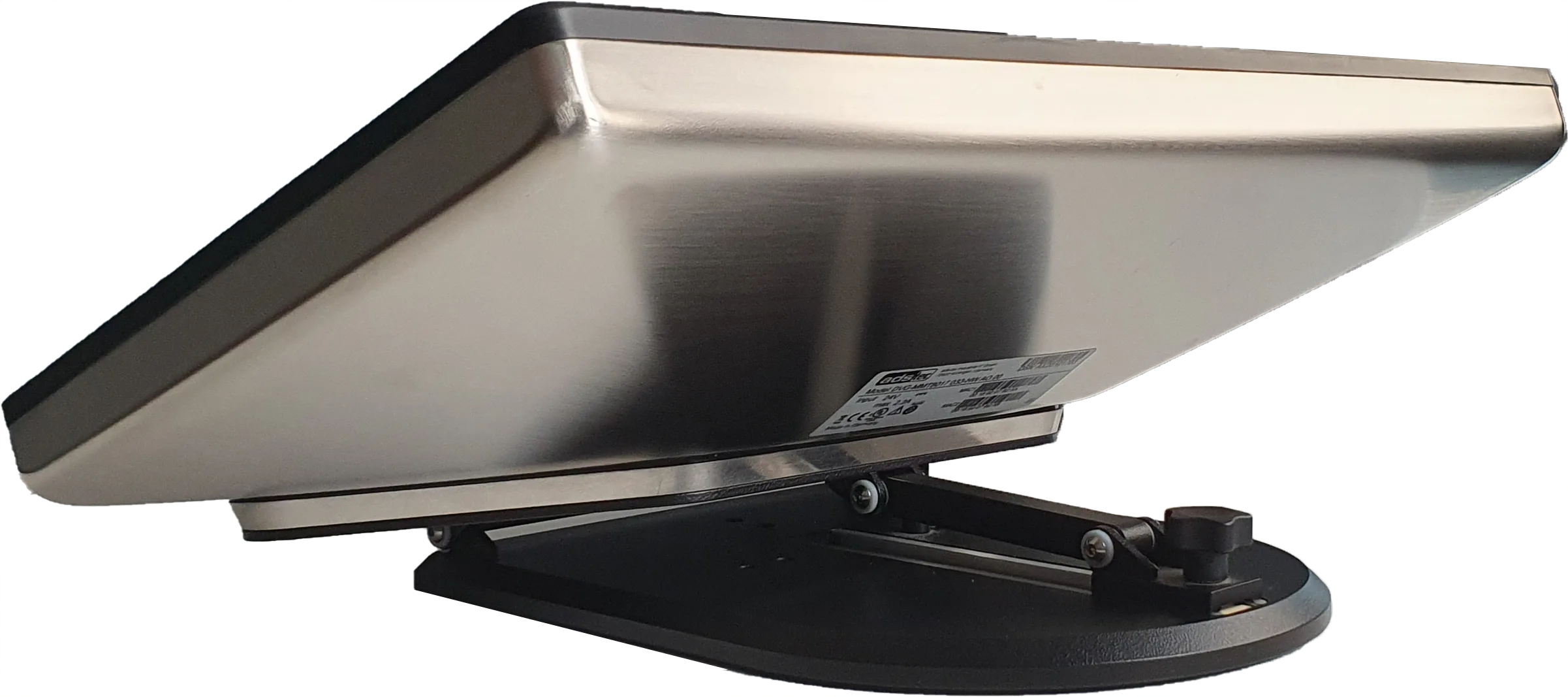

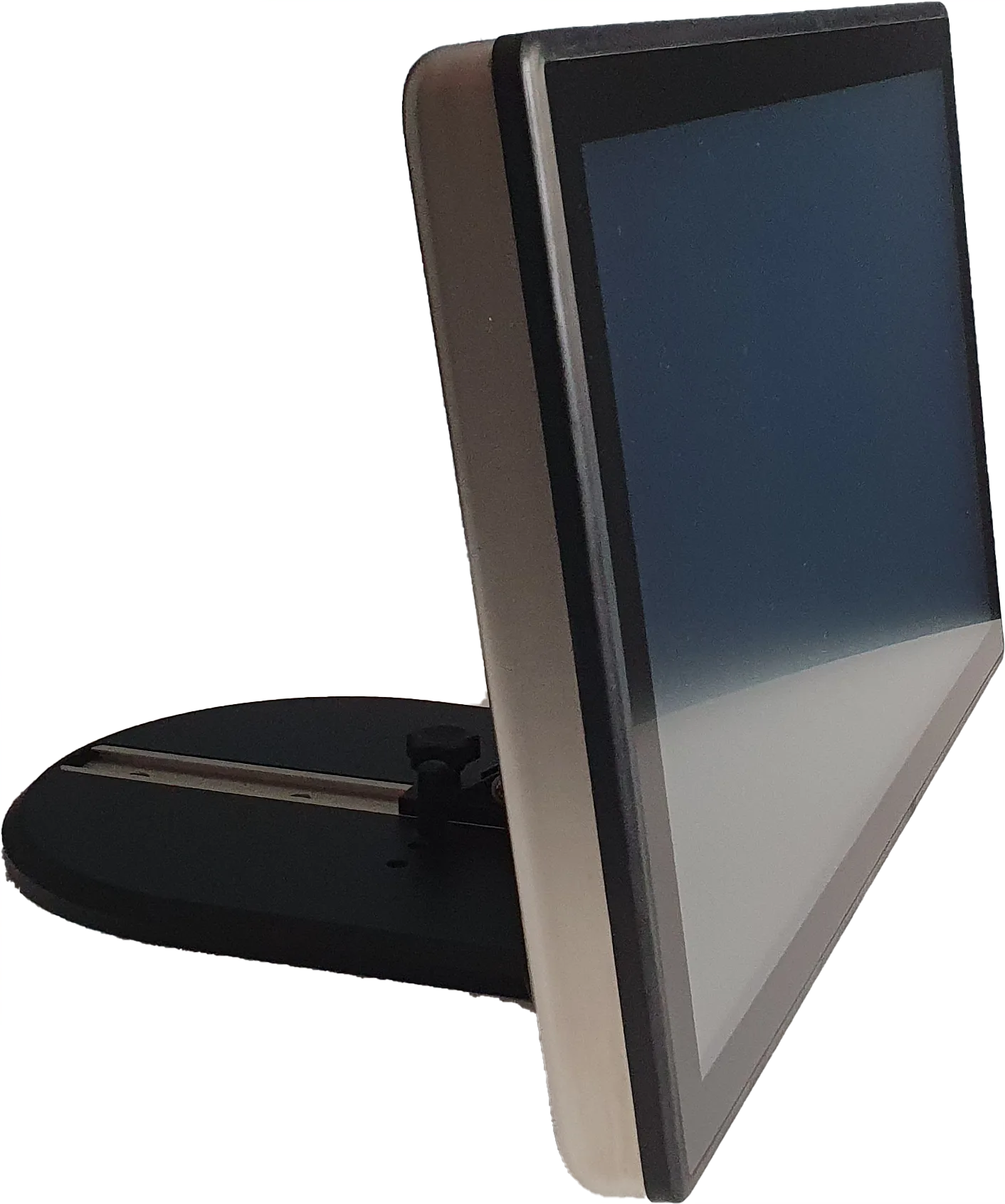

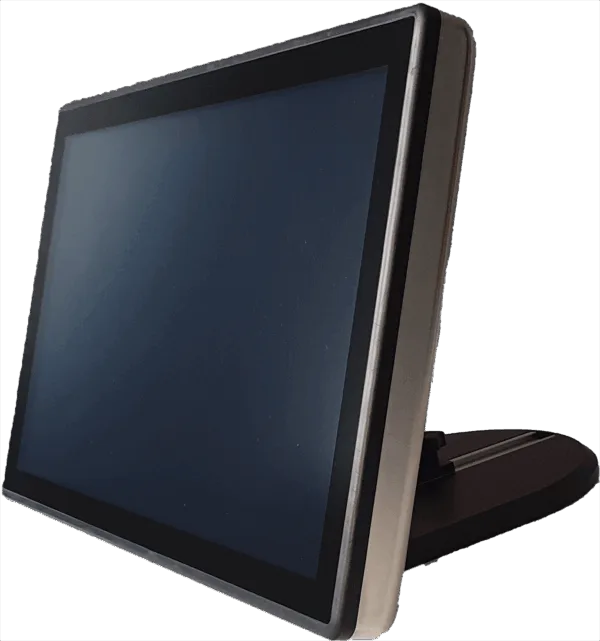

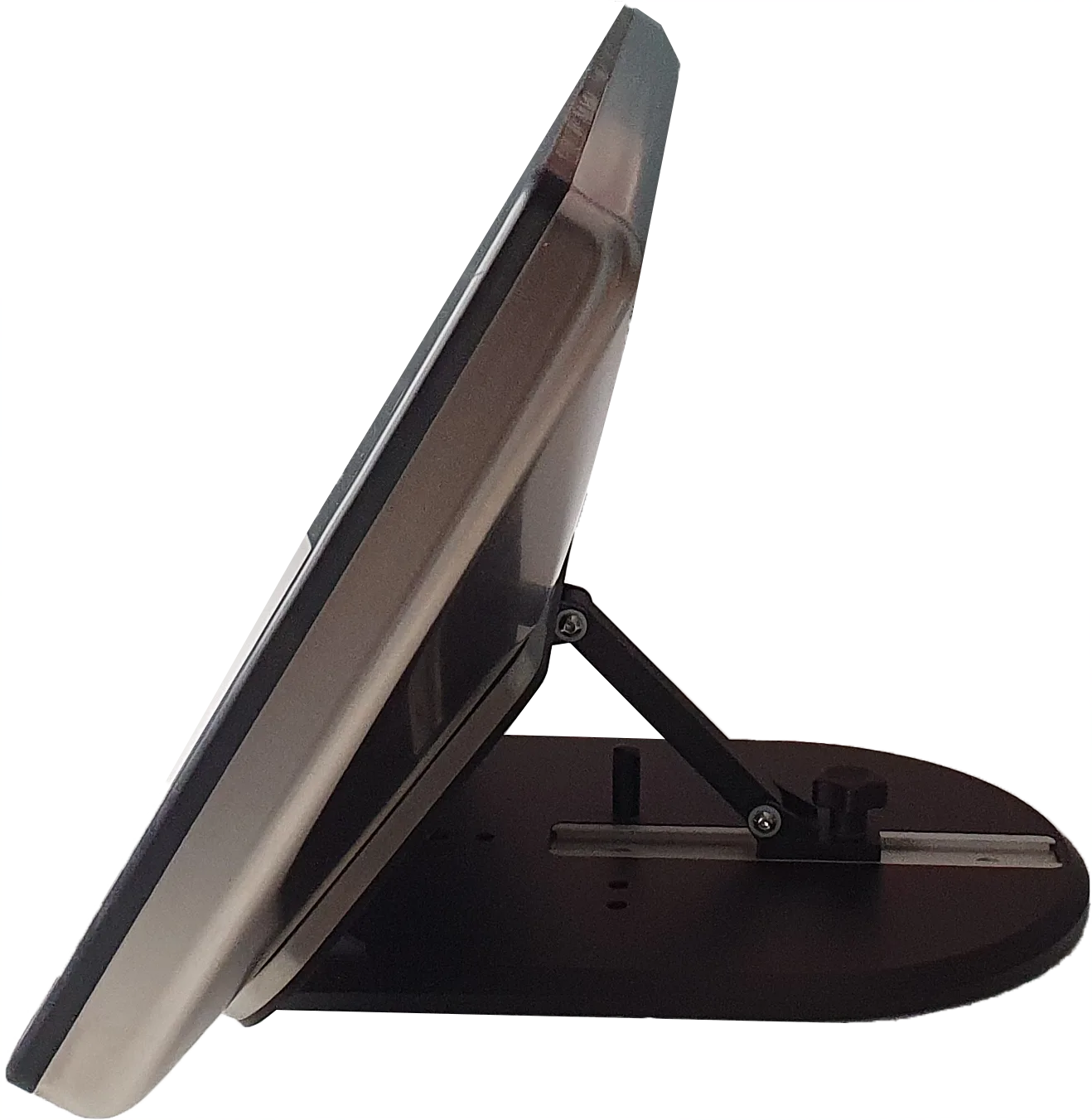

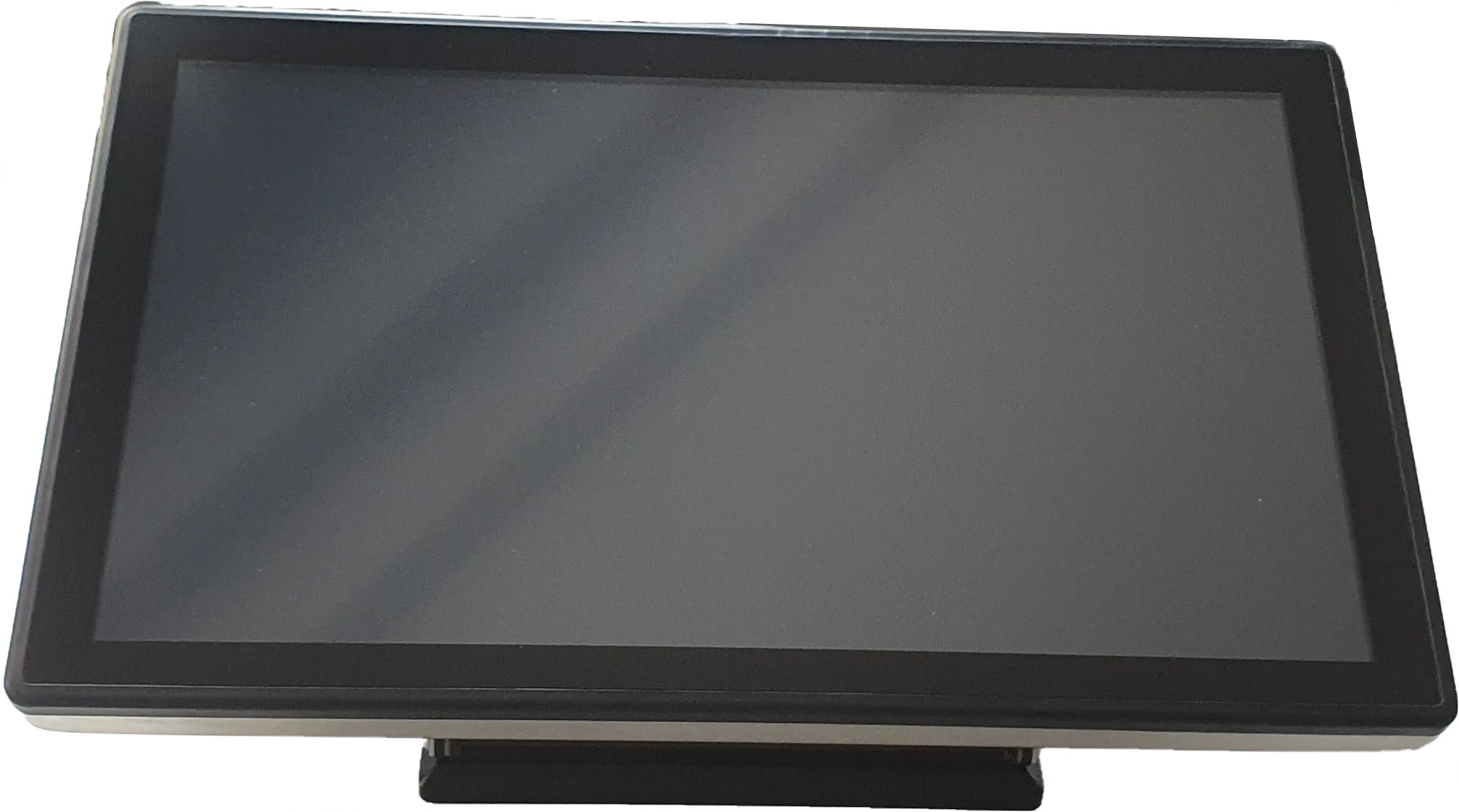

ADS-TEC DVG-MMT8017 033-HW Machine Mounted Terminal
The ADS-TEC DVG-MMT8017 033-HW AO.00 is a machine mounted industrial terminal from the ADS-TEC MMT8000 series. It combines a 17.3-inch Full HD PCAP multi-touch display with an integrated industrial PC for machine operation, process visualisation and operator control applications.
This unit has been lightly used and is in very good cosmetic condition. It has been thoroughly function-tested before sale and is supplied with its mounting stand and a compatible non-original power supply.
Product Identification
- Manufacturer: ADS-TEC
- Series: MMT8000
- Model: DVG-MMT8017
- Full part number: DVG-MMT8017 033-HW AO.00
- Product type: Machine Mounted Terminal / Industrial HMI
- Condition: Used – lightly used and in very good cosmetic condition
Technical Specifications
Display and Touchscreen
- Display size: 17.3 inches
- Display type: Full HD LED industrial display
- Resolution: 1920 × 1080 pixels
- Touch technology: Projected capacitive PCAP multi-touch
- Touch surface: Tempered glass
Processor, Memory and Storage
- Processor: Intel® Core™ i5-4300U, 1.90 GHz
- Memory: 8GB DDR3
- Storage: 120GB SSD
- Cooling: Passive, fanless cooling system
Housing and Protection

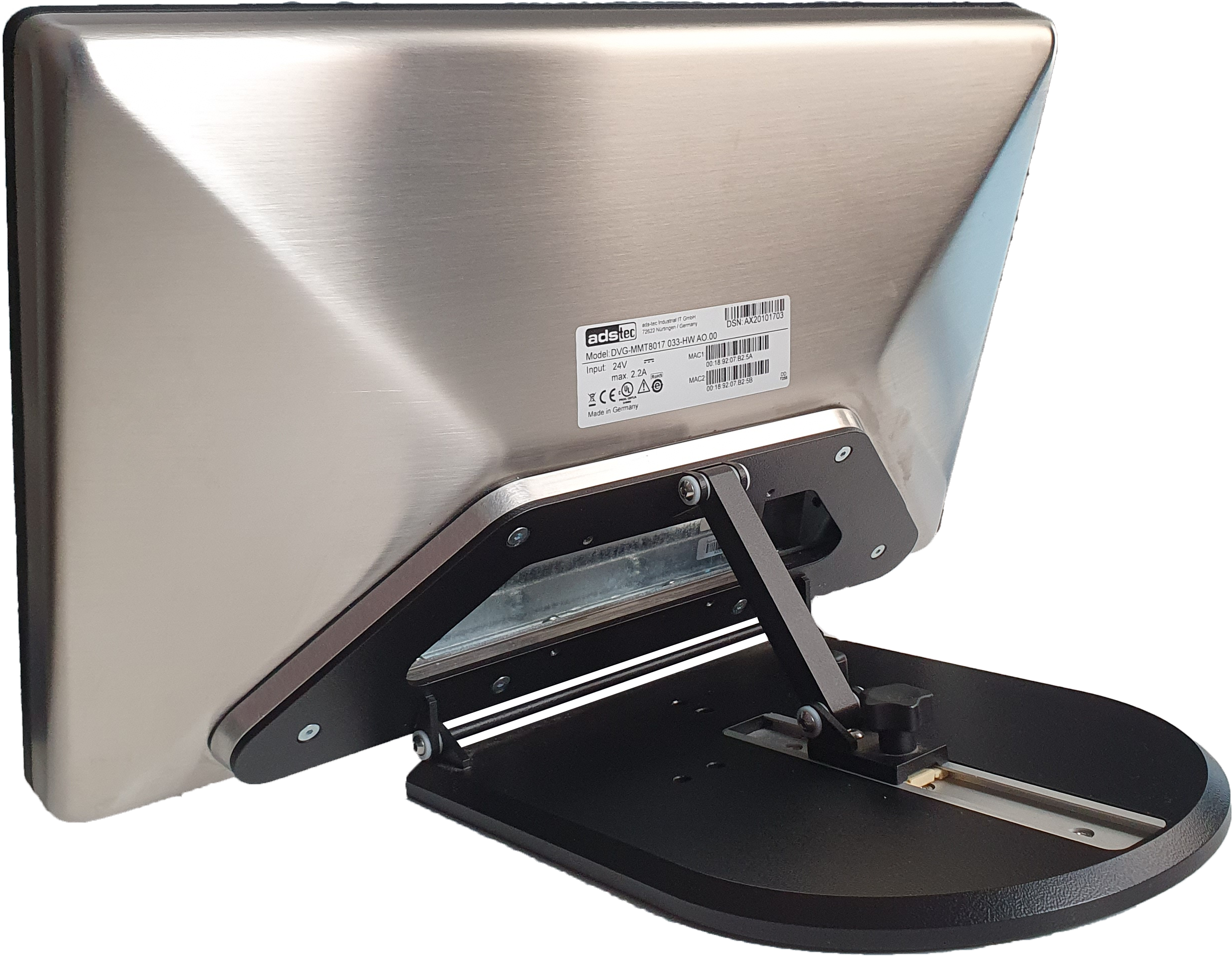

- Housing: Completely closed stainless steel housing
- Protection class: IP65
- Power input: 24V DC
- Permitted input range: 18–30V DC
- Dimensions: 431 × 261 × 68 mm without mounting stand
- Weight: approximately 5 kg without stand and approximately 10.5 kg with stand
IP69K protection was available as an optional specification within the MMT8000 product series. It is not listed here as a confirmed protection class for this specific unit.
Interfaces and Wireless Connectivity
- Ethernet: 2 × Gigabit Ethernet RJ45
- USB: 1 × USB 2.0
- USB: 2 × USB 3.0
- WLAN: Integrated
- Bluetooth: Integrated
The available ports, network interfaces and wireless functions were checked during functional testing.
Product Condition and Functional Testing
This ADS-TEC DVG-MMT8017 terminal has been lightly used and is in very good cosmetic condition. A temporary operating system was installed solely for diagnostic and functional testing.
Functions checked during testing
- Display and image output
- PCAP multi-touch functionality
- Ethernet interfaces
- USB 2.0 and USB 3.0 ports
- WLAN connectivity
- Bluetooth connectivity
- SSD and memory operation
- System stability under load
- Power-up and general hardware operation
The temporary operating system used during testing was removed before sale. The terminal is supplied without an installed operating system or software licence.
Typical Applications
The ADS-TEC MMT8017 is designed for machine-mounted operation, process visualisation and operator interaction in industrial environments. Typical applications include:
- Machine and production line operation
- Industrial HMI applications
- Process visualisation
- Operator interface systems
- Factory automation
- Food and beverage production
- Packaging machinery
- Pharmaceutical production
- Chemical and process industries
Included in the Delivery
- ADS-TEC DVG-MMT8017 033-HW AO.00 machine mounted terminal

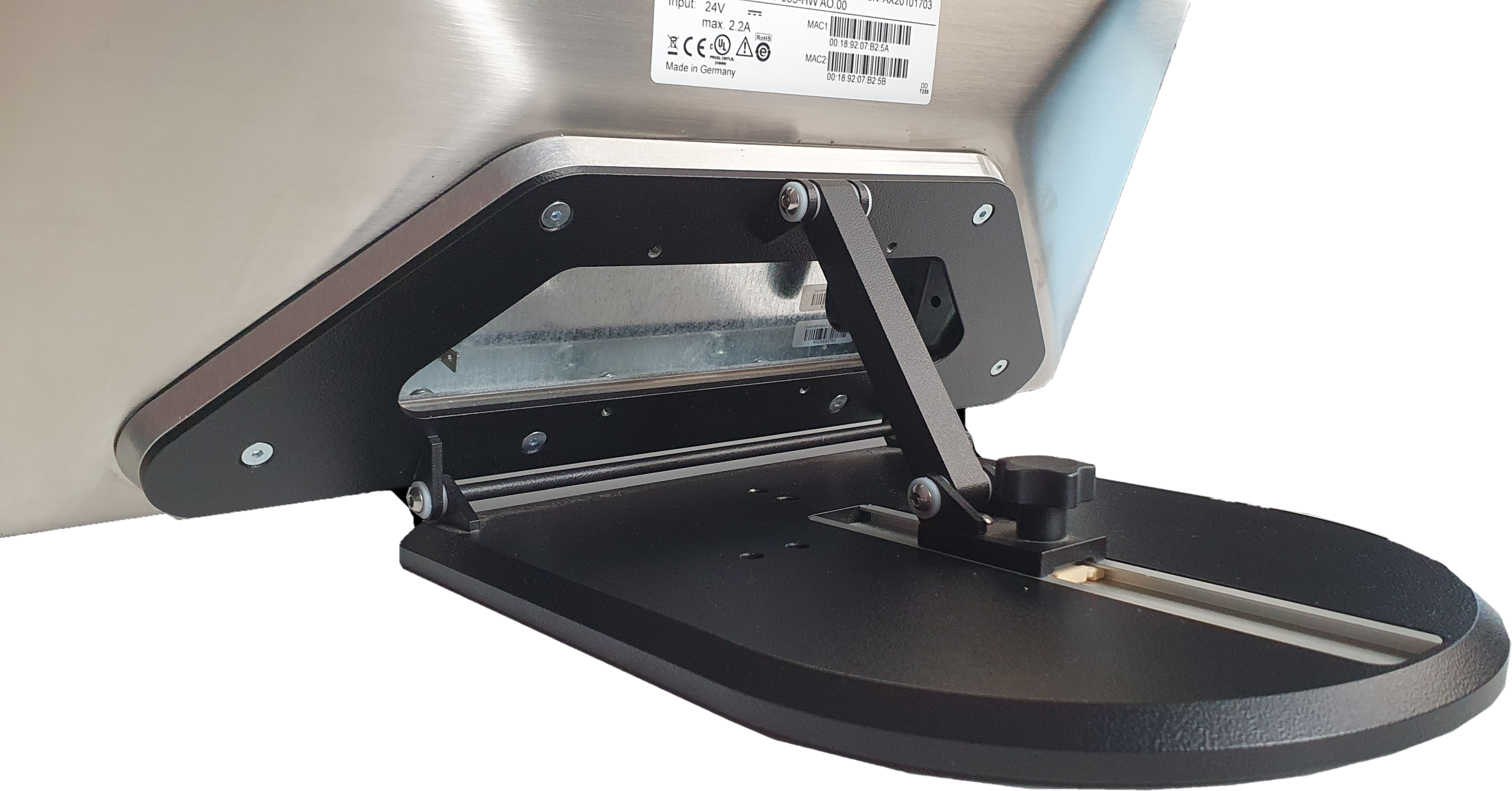

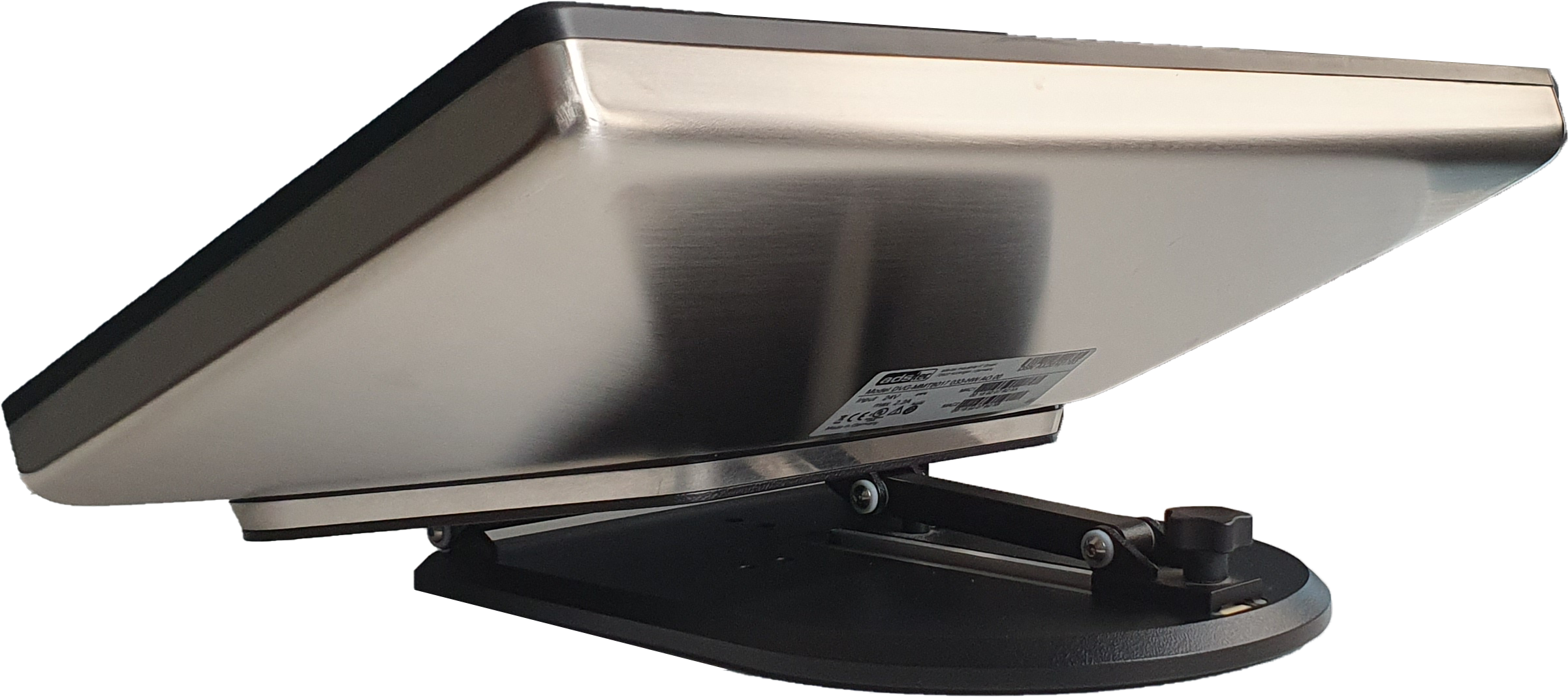

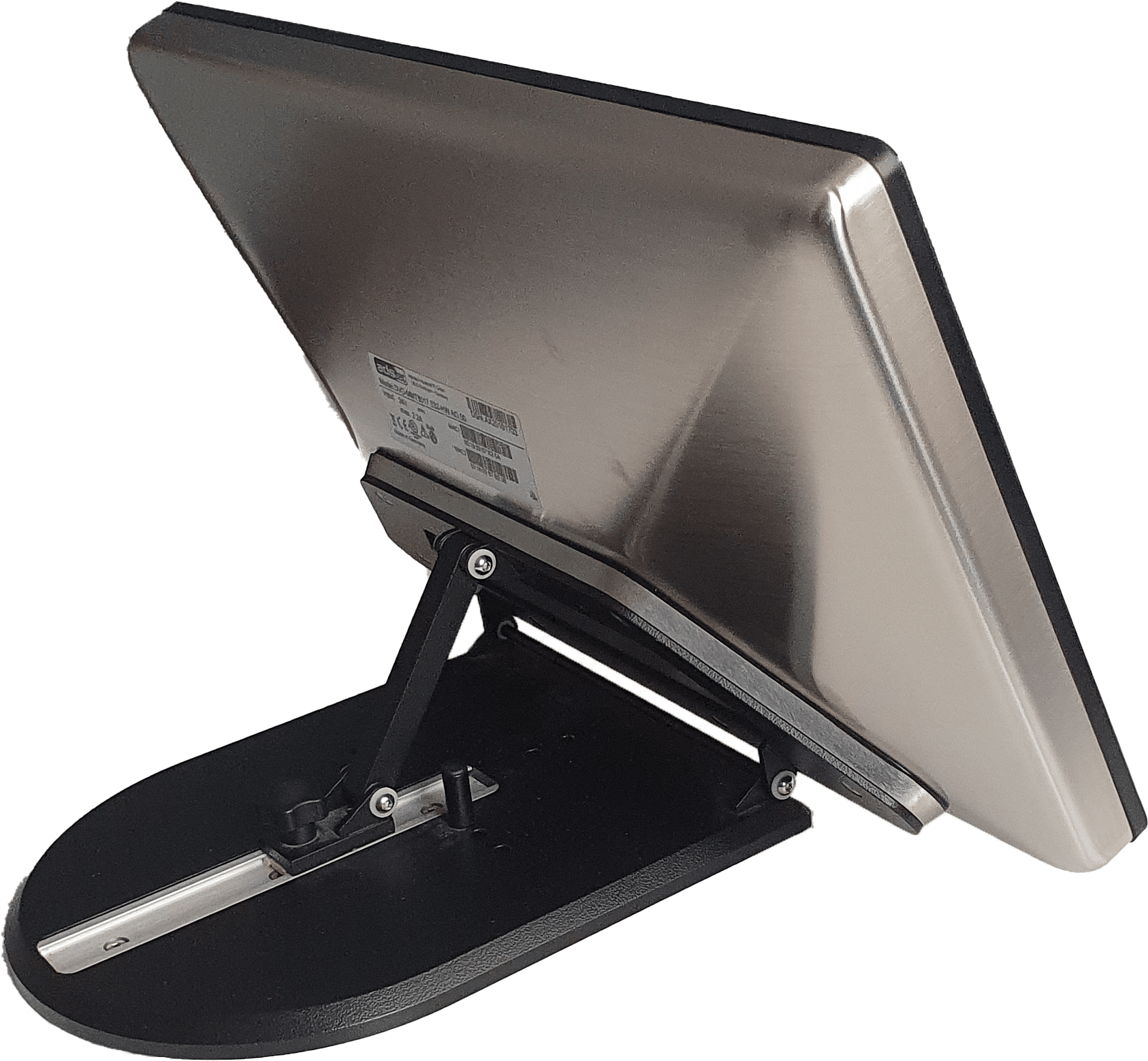

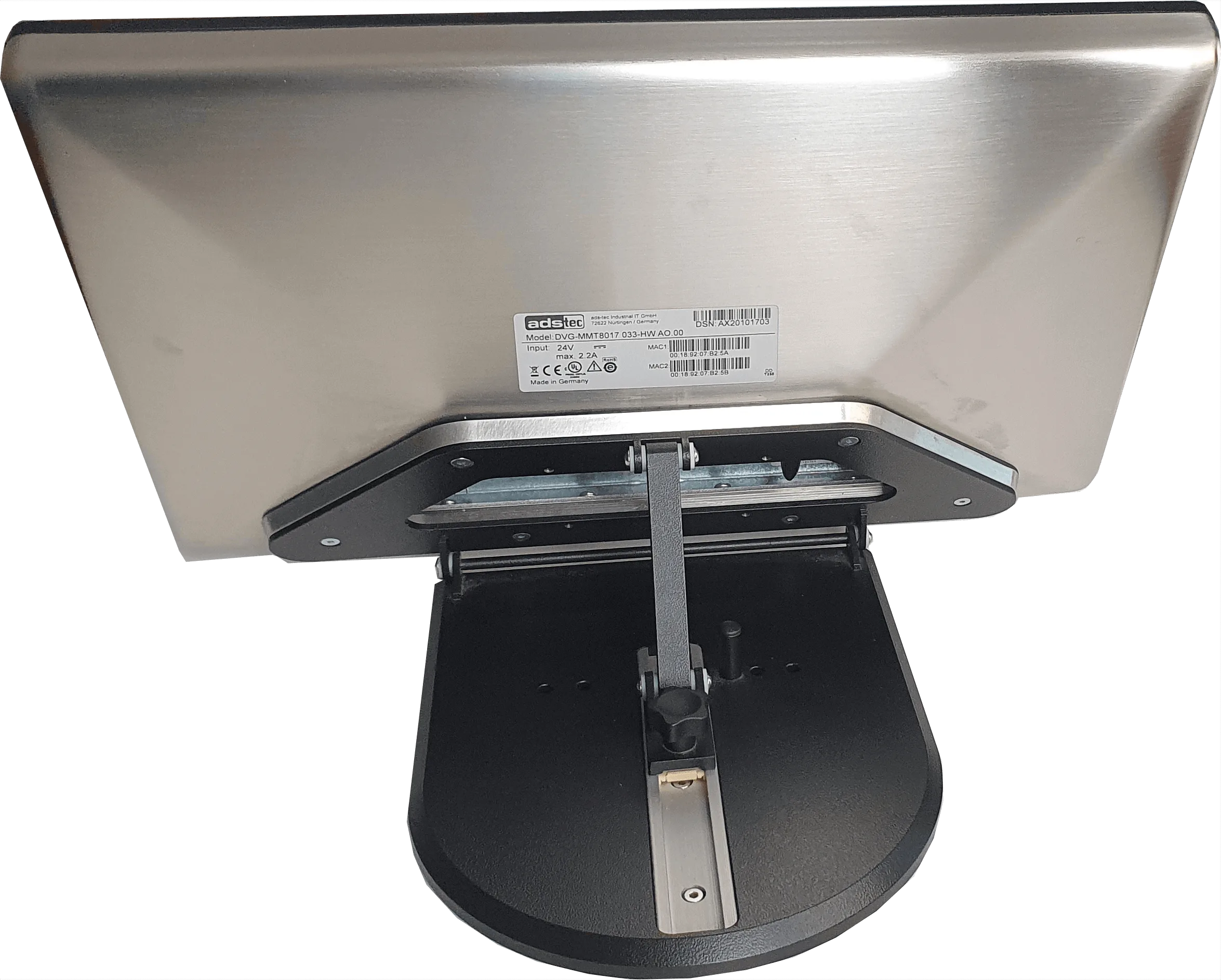

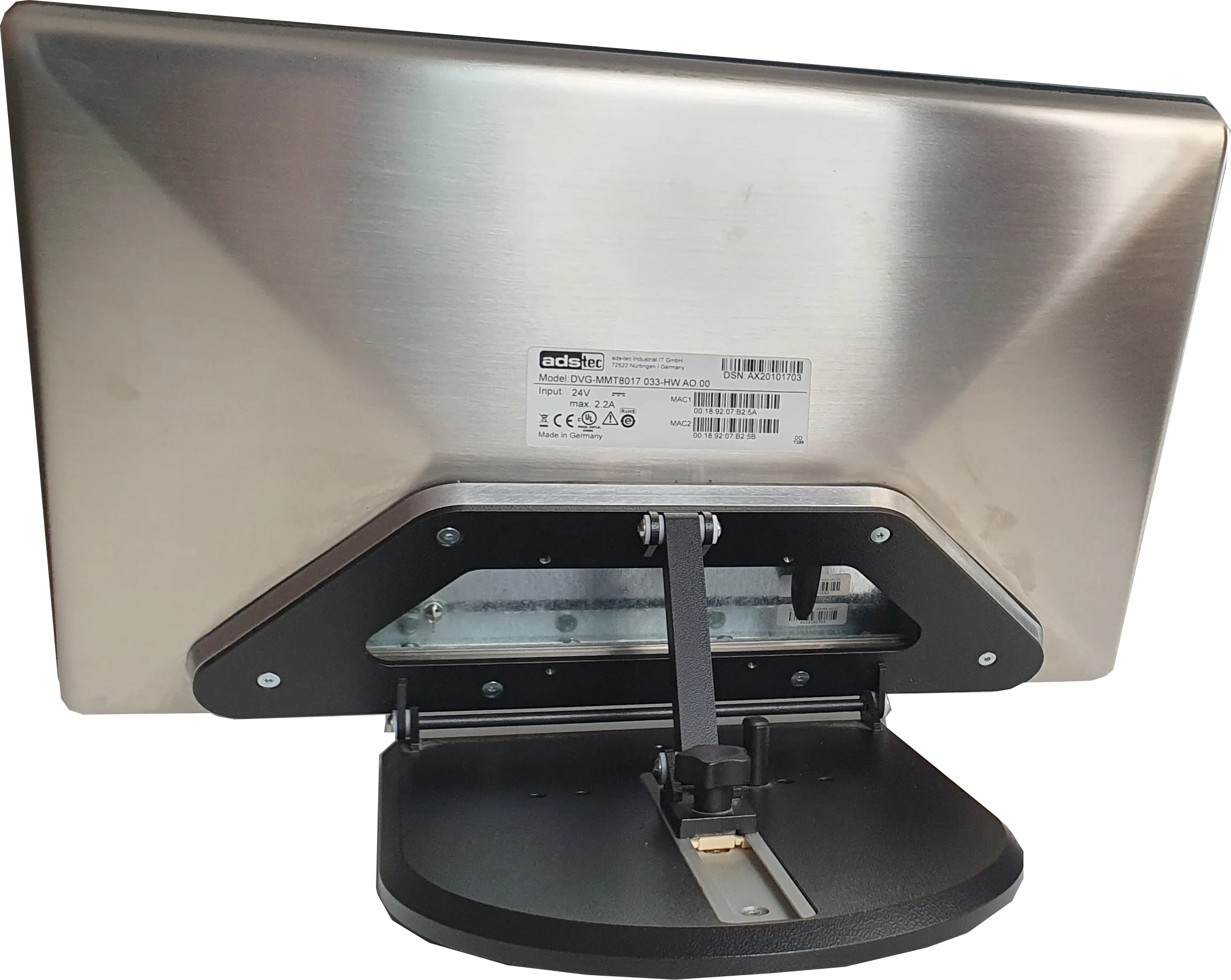

- Mounting stand
- Compatible non-original power supply
Operating System and Software
No operating system or software licence is included.
The terminal was tested using a temporary operating system that was installed only for hardware diagnostics and functional testing. The purchaser is responsible for installing a suitable operating system, drivers and application software for the intended use.
Warranty
This product is supplied with a 12-month warranty.
Important Information Before Purchase
ADS-TEC MMT8017 terminals were produced in different hardware and equipment configurations. Before ordering, compare the complete part number DVG-MMT8017 033-HW AO.00, the product photographs, the installed hardware and the required interfaces with your existing unit or application.
The included power supply is compatible with the terminal but is not an original ADS-TEC power supply. An operating system, software and software licence are not included.
